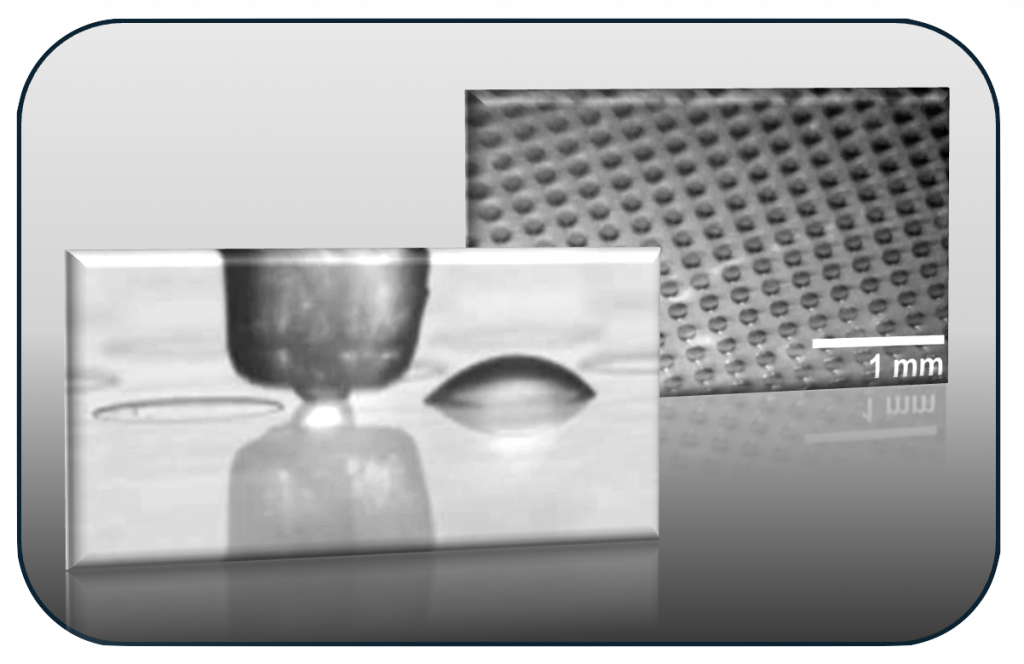

Miniaturized Liquid Handling
Ease-of-use, open and accessible droplet microfluidics
Up to 100'000 samples per microarray slide
50 pL to 10 nL, depending on your application
High-Throughput Screening in a Box

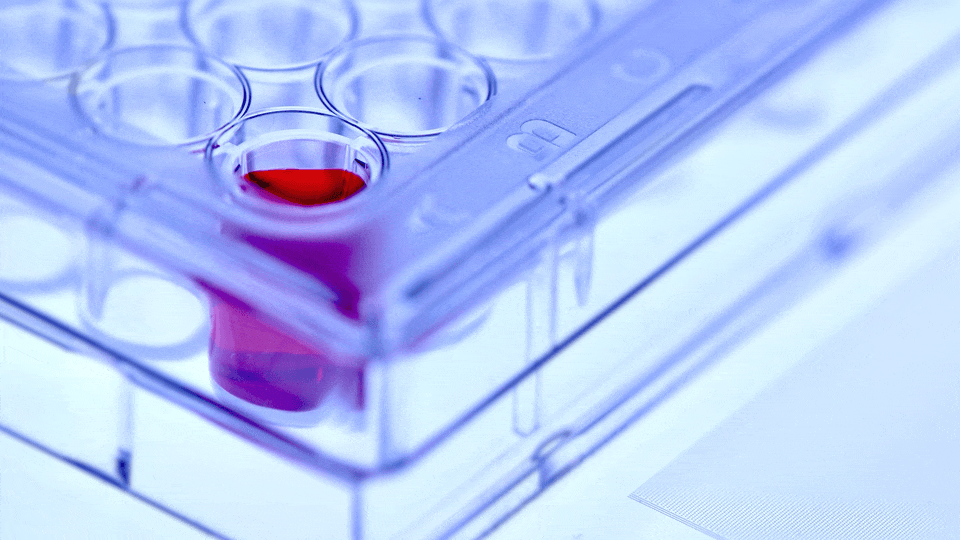

Microdroplet arrays are the next generation of multiwell plates. Get ready with us to transfer your workflow into the microscale with our benchtop liquid handling platform.
Contact usThe all-in-one solution for microdroplet arrays
Liquid handling, incubation, imaging and analysis in one platform
1
Samples per plate
1
Consumption reduction
1
Less plastic waste
ArrayFlux

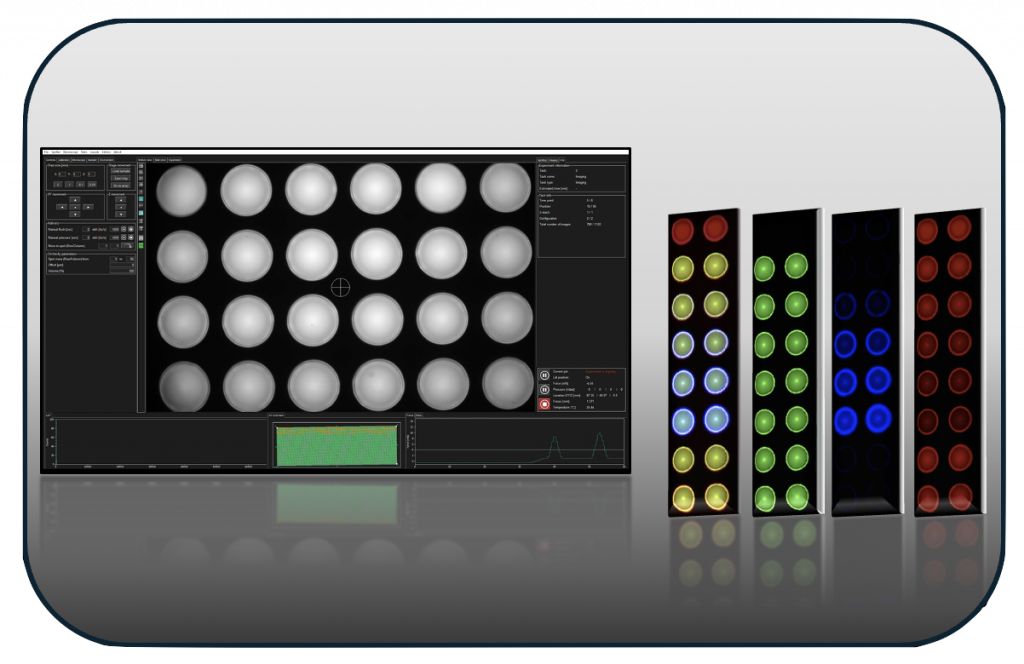

High-Content Imaging
Integrated fluorescence, brightfield and time-lapse microscopy
Up to 6 filter cubes and 4 magnifications
Analysis of up to 1'000 samples per minute
Environmental Control
Long-term cultivation with precise volume control
Environmental control (temperature, CO₂)
Time-resolved assays over days to weeks

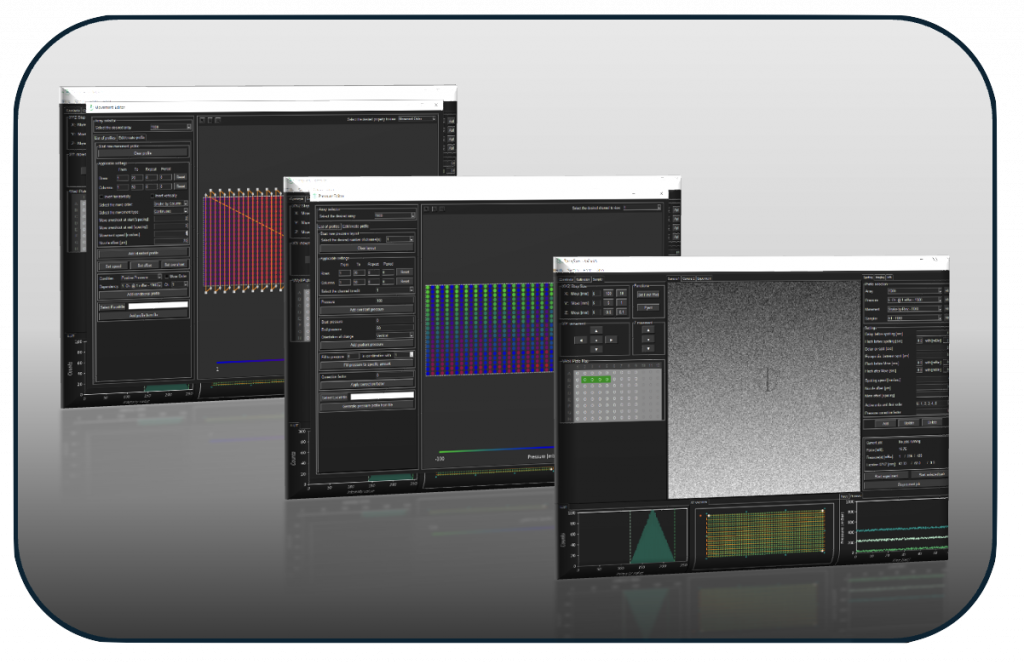

Analytical Software Suite
Compact benchtop format with end-to-end workflow
AI-driven analytics for automated hit identification and decision making
Scalable from academic labs to industrial high-throughput facilities

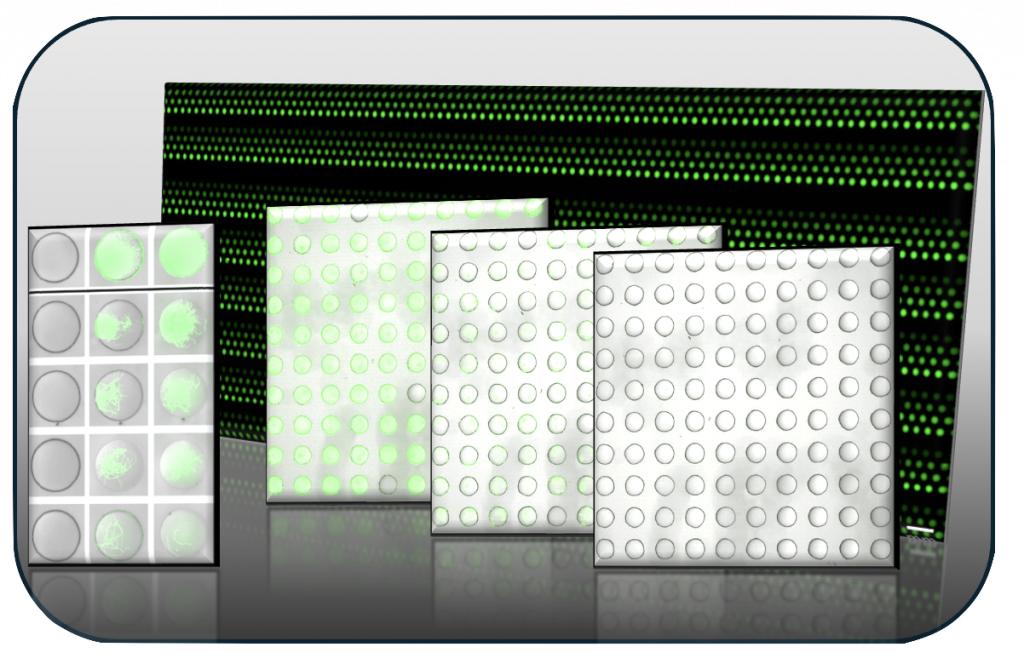

Microsized consumables
Instead of well plates, we use microarrays as the sample vessel. Each droplet is separated by a specialized hydrophilic-hydrophobic surface pattern.
| Number of Samples (#) | Volume per Droplet (nL) | Total Volume (µL) | Droplets per Image (#) |
|---|---|---|---|
| 10'450 | 10 – 1 | 42 | 12 |
| 22'500 | 1 – 0.2 | 11 | 20 |
| 50'000 | 0.2 | 10 | 88 |
| 100'000 | 0.05 | 5 | 192 |
Application range
Our miniaturised liquid handling platform enables a wide range of applications in life sciences.
Combinatorial Antibiotic and Drug Screening
(Bio-)chemical Assays and Protein Engineering
Compatible with MALDI-TOF Mass Spectrometry
Miniaturized Long-Term Cell-Based Assays
Scientific sources
- Ultrafast Formation of Microdroplet Arrays with Chemical Gradients for Label‐Free Determination of Enzymatic Reaction Kinetics
- Open microfluidics: droplet microarrays as next generation multiwell plates for high throughput screening
- Microdroplet Arrays for High-Throughput Analysis and Biochemical Assays
- Droplet microarrays for high throughput analysis of biochemical samples and single cells
- Liquid-in-Liquid Prints: High-Density Biochemically Encoded Information Preserved in Microdroplet Arrays
- Two-Layer Droplet Arrays Enable Dynamic Manipulation of Cell Microenvironment During High-Throughput Bacterial Cultivation
- High‐Density E. Coli Cultivation Arrays for Combinatorial Drug Testing With Subsequent Lipid Profiling by MALDI‐MS
- Application of a microdroplet array platform for high-throughput analysis of growth and natural product biosynthesis of Streptomyces
